Overview

This series of controllers is designed for manual/automatic parallel systems of multiple generator sets of the same capacity or different capacities. It is also suitable for constant power output of a single generator set and parallel generation of multiple generators. The generator set has automatic start and stop/parallel operation, data measurement, and alarm protection functions.

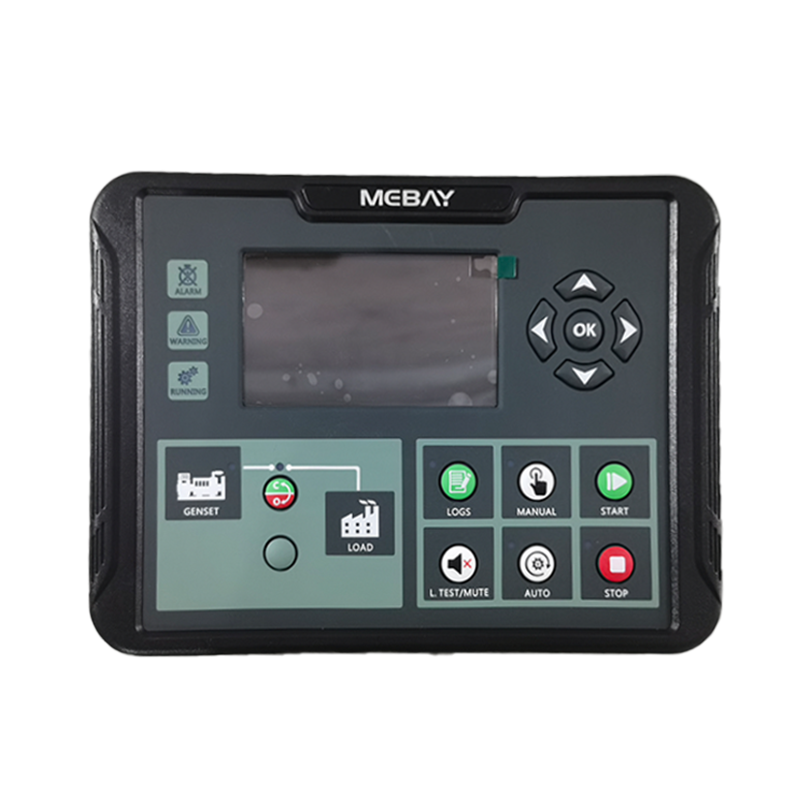

This controller uses a 4.3-inch TFT color large-screen LCD to display relevant parameters of the generator set. It has a new and original UI design. The parameters are displayed through analog pointers and numbers. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The parallel controller has the function of controlling GOV and AVR, can automatically synchronize and load share, and can be connected in parallel with the generator set equipped with DC100D controller. The controller accurately monitors the various working conditions of the generator set. When the generator set is working abnormally, it will automatically open and detach from the busbar, shut down the generator set, and display the fault status on the LCD. The controller has a SAE J1939 interface and can communicate with a variety of EFI engine ECUs with J1939 interfaces.

The controller has built-in simplified Chinese, traditional Chinese, English, Spanish, and Russian display interfaces to choose from, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.

main feature

Dual-core 32-bit imported high-performance microcontroller control;

4.3-inch TFT color large-screen LCD display, comes with 5 language switches, and the language can be customized according to needs;

The UI interface of pointer instrument and digital display is a new original design that integrates dynamics and precision;

The screen protection is made of hard screen acrylic material, which is wear-resistant and scratch-resistant;

Using silicone panel, it is effectively waterproof, oil-proof and UV-proof, has good operating feel and long service life;

Standard USB interface, through which parameters can be set, real-time monitoring can be performed, and parameters can be set when the controller is powered off;

Equipped with RS485 interface, the "three remote" functions can be realized using MODBUS protocol;

Standard CAN communication interface, built-in J1939 protocol, matched with more than 30 types of EFI engines;

Collect and display a variety of engine and generator parameters;

Input and output port functions and status display are clear at a glance;

The setting interface adopts a multi-level menu-type classification design, which is convenient and fast;

Built-in real-time clock, with duty plan and maintenance plan functions: through settings, the monthly or weekly duty plan of the generator set can be arranged, and the monthly or weekly maintenance plan of the generator can be arranged, so that the generator set can be used more flexibly ;

working conditions

-30-70℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Insulation level

When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.

Dimensions

241mm*177mm*45mm

Hole Size

220mm*160mm

weight

1Kg
