DSE2548

DSENet® LED Output (8) Expansion Module

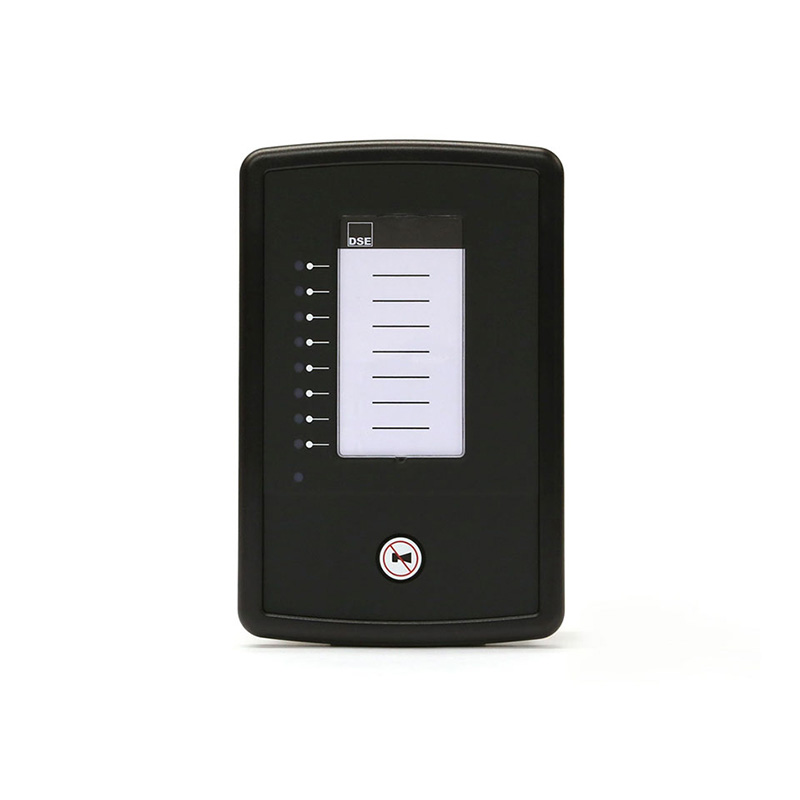

The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module.

Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs.

OVERALL SIZE
180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
PRODUCT VARIANTS
2548-01 - 2548 Output Expansion Module
