Module

DSE6020

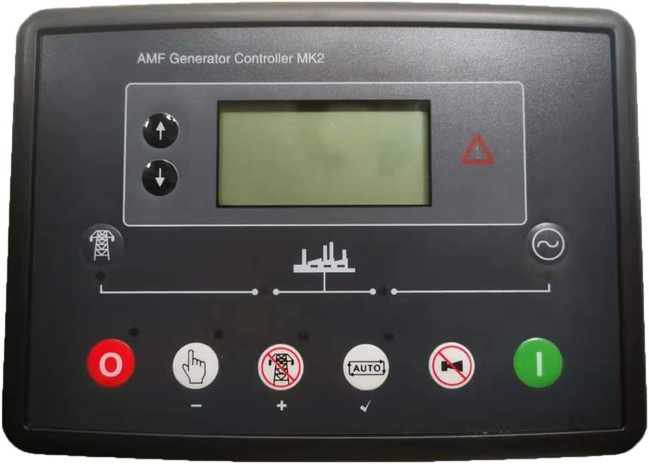

AUTO MAINS FAILURE GENERATOR CONTROL MODULE

FEATURES

The DSE 6020 Generator Controller is an Auto Start Control Module and the DSE6020 Generator Controller is an Auto Mains Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

Generator Controller DSE6020 offers electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.

DSE 6020 AMF module,The control system is an integral part of the unit and also the heart of the unit. The application of the intelligent control system in the unit is helpful to improving the quality of the electric energy and the automation level of the unit.

1:Standard screen: Namely manual control screen. You only need to connect the start battery to control the unit locally.

2:Self-start control screen: The unit can realize both local manual control and remote control (by the external signal line). You need to connect the signal control line to this screen correctly

3:"Three-remote" communication fully automatic control screen: On the basis of the "self-start control screen" function, it also has the communication mode

4: It is used in the automation and monitoring system of single unit. It has many functions like automatic startup/shutdown, data measurement, alarm protection and "three-remote". The controller has large LCD display and Chinese/English interface, realizing simple operation and reliable running;

Key Features

Back-lit LCD display

Front panel editing

LED and LCD alarm indication

Power Save mode

CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)

PC and front panel configuration

4 Digital inputs

3 Analogue inputs

6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)

Configurable timers and alarms

Alternative configuration

Event Log (5)

Remote Start input

3 Phase generator monitoring

Current monitoring and protection

Power monitoring (kW, kV A, kV Ar)

3 Phase Mains (Utility) monitoring (DSE6020 only)

Test button (DSE6020 only)

Battery Voltage monitoring

Engine pre-heat

Hours counter

Comprehensive shutdown or warning on fault condition
