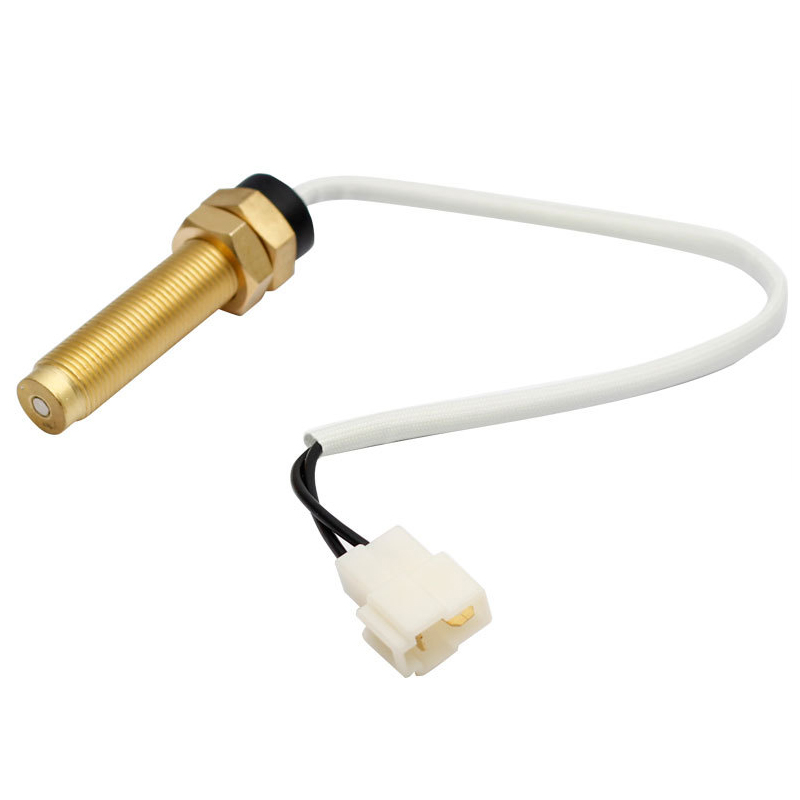

M16 Generator Rotational Speed Sensor

M16 Generator Rotational Speed Sensor


Product Description

Specification:
Item Type: Magnetic Rotate Speed Sensor
Material: Aluminum Alloy
Model: ZL M16
Operating Environment Temperature: -30℃ to 120℃
Maximum Induced Voltage: 50V AC
Maximum Tightening Torsion: 49Nm
Installation Thread: M16
Output : Switch Type
Protection Grade: IP44
Linearity: 5 (%F.S.)
Hysteresis: 5 (%F.S.)
Repeatability: 0 (%F.S.)
Sensitivity: 100%
Feature: This product is a magnetoelectric speed sensor installed next to the flywheel of the engine. When the engine rotates, the speed sensor senses an AC , and its frequency is proportional to the engine speed. The speed sensor can be used with tachometer to measure the engine speed.

How to Use:
Install to use.

packing list:
1 x Magnetic Rotate Speed Sensor
2 x Terminal
