Product Description

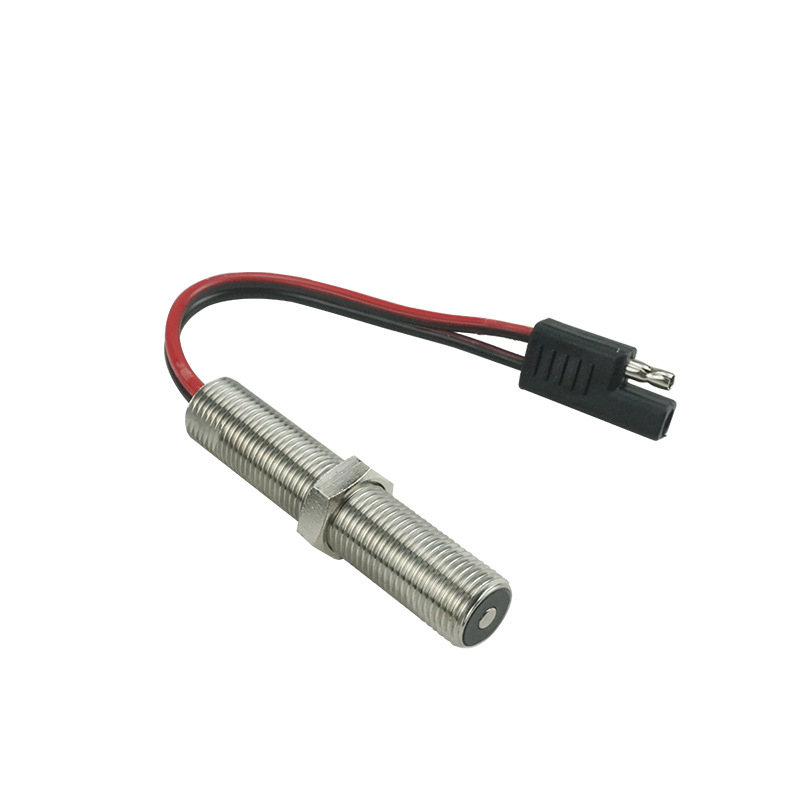

M16*1.5 Thread MPU MSP6723 MSP6723C Generator Magnetic Pickup Speed Sensor for Engine

Diesel Generator Speed Sensor MPU MSP6723C MSP6723

The Diesel Generator Speed Sensor MSP6723 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the Generator Speed Sensor MSP6723C, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available for the Diesel Generator MPU

Technical parameters：

• Range:50-5000Hz

• Inductance value:142MH+25%

• Resistance value:300Ω MAX

• Thread:M16*1.5mm

• Off-tooth distance:0.64-0.89mm

• Temperature range:-55℃ celsius to 105℃

• Idle output:1.5 volts AC Min

• MAX output:30 volts AC
