Product Description

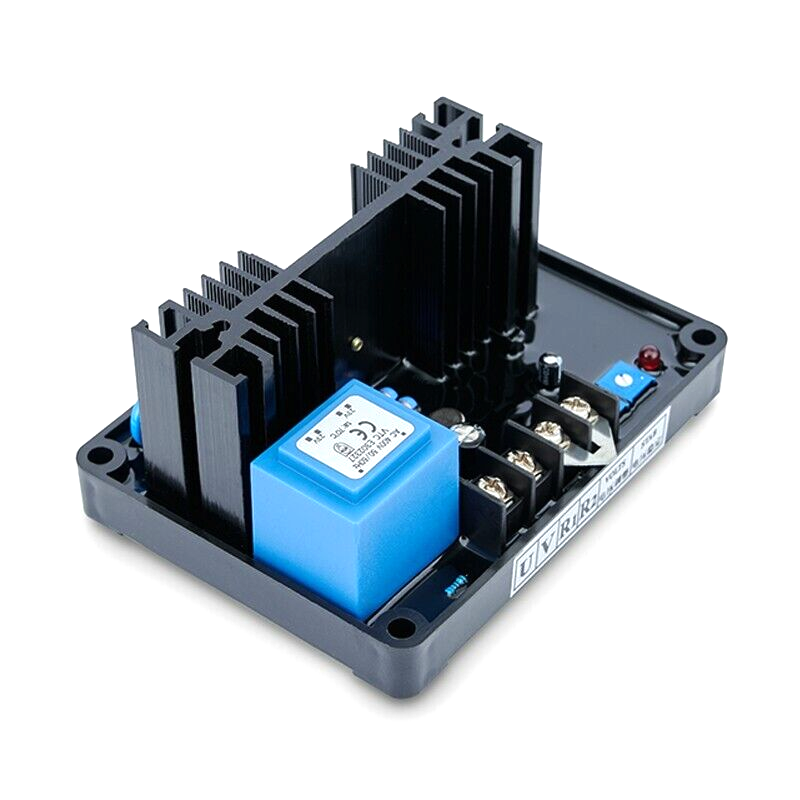

Brush Type Generator Single Phase AVR GB-110 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Technical sepcification
Sensing/Power input
Voltage: 400V AC, 1 phase 2 wire
Frequency: 50-60 Hz nominal
Phase: 1
Voltage: 20-100VDC
Magnetic Field Output: Current20A
Resistance: 15 ohms minimun
Pressure Regulating Accuracy:
