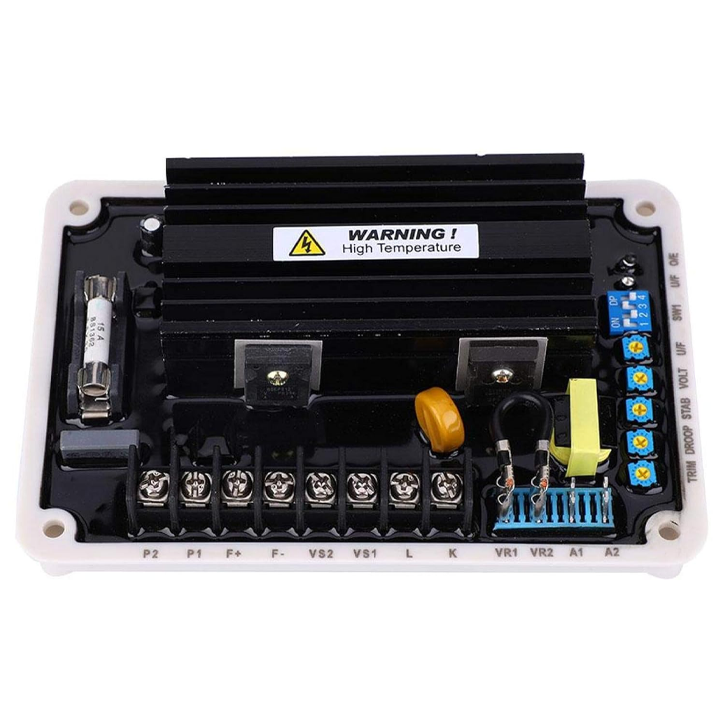

AVR EA16FC Automatic Voltage Regulator

AVR EA16FC Automatic Voltage Regulator

Product description

Specification:

Condition: 100% Brand new

Sensing Input:

Voltage: 170-510VAC single-phase two-wire, voltage is optional for DiP switch

Frequency 50/60Hz, DIP switch optional

Power Input:

Voltage: 60-300VAC single-phase two-wire

Output:

Voltage: Maximum 90VDC when inputting 240VAC

Current: 16A continuous, non-continuous 20A within 10 seconds

Resistance: Minimum 1.5Ω

Pressure Regulation Accuracy: <±0.5% (engine speed changes within 4%)

Voltage Establishment: at the AVR input terminal, the residual magnetic voltage needs to be 5VAC or more.
